Grade 3 · Low-Tech Builds · Lesson 26

Mechanical Puppet Theater

Make a character move with tabs, pivots, sliders, and simple linkages.

Time2–3 × 60 minutesTeamsTeams of 3–4EquipmentNo powered equipment required

Project inspiration · 3 images

See, build, and test

Use these images to understand the kind of making, details, and testing involved. They are inspiration—not designs students must copy.

Finished student example for Mechanical Puppet Theater
01Finished project

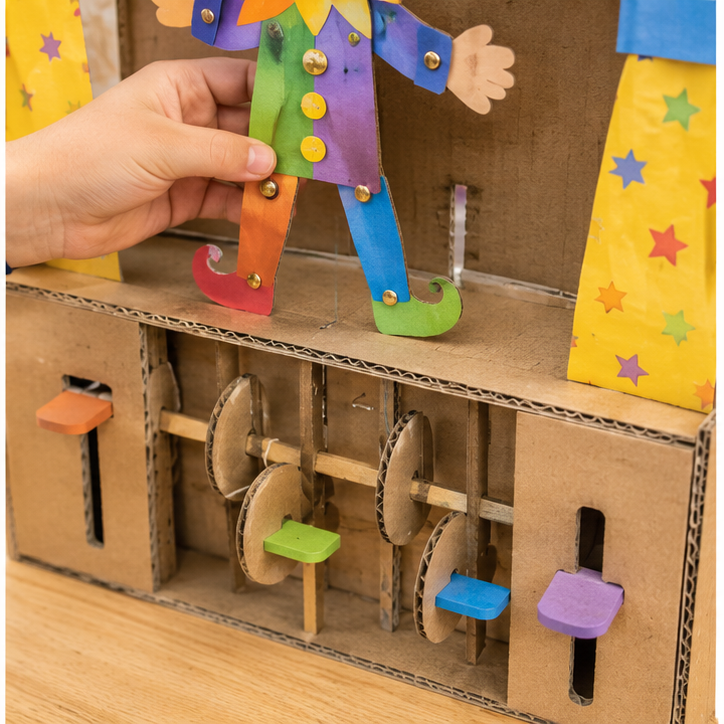

Close construction and materials view for Mechanical Puppet Theater
02Construction detail

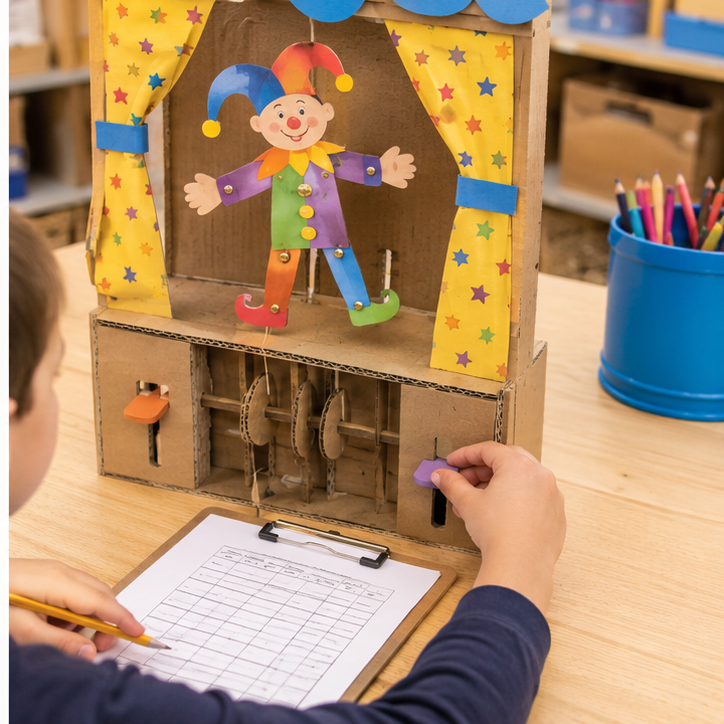

Students testing and recording results for Mechanical Puppet Theater
03Student testing

Student directions · Grade 3

What will you make and do?

You will make a cardboard puppet scene with two movements you can control, such as an arm waving and a character rising. The movements should help tell a short story.

Teacher overview: Students will plan the specific object described below, make and test a first version, then use their results to improve it. Read one step together, demonstrate the unfamiliar action, and let students complete that step before moving on.

  1. 1Plan your project

    Draw the scene and circle the two parts that move. Sketch the hidden tabs, levers or strings that will move them.

  2. 2Make the first parts

    Build and test one moving joint using the teacher-approved fasteners. Add a pull tab or lever and check that it moves without tearing.

  3. 3Put it together

    Add the second movement and a backdrop that does not block the controls. Label the controls on the back for the puppeteer.

  4. 4Test it fairly

    Perform the same short scene three times. Record jams or tears and ask a viewer what happened in the story.

  5. 5Improve one part

    Change one joint, control length or clearance that caused trouble. Repeat the performance.

  6. 6Show and turn in

    Show the story and then the mechanism behind it. Submit a movement-arrow drawing and your performance test notes.

How will you know it works?

  • Character completes two clear movements
  • Controls work without tearing or jamming
  • Movement supports an understandable story

Before you move on

Tell a partner what you are making. Point to the part you will work on next. Draw or dictate your test notes if writing slows you down.

Machine cutting, printer setup and electrical power-on require adult approval. A basic-materials model is a valid way to demonstrate the design when equipment is unavailable.

Keep your plan, test notes and before-and-after evidence with the printable design brief below. Use the detailed teacher plan and any coding guide for tool instructions. These steps continue across the lesson’s meetings, not all in one sitting.

For teachers

Engineering standards

This shows how the lesson connects to the national NGSS engineering standards and what student work you can collect.

Assessed

3-5-ETS1-1

Teams define the user or purpose, success criteria, and limits before building.

What students show: Problem statement with measurable criteria and material constraints.
Practiced

3-5-ETS1-2

Students sketch and compare at least two solutions before choosing or combining features.

What students show: Two labeled ideas and an evidence-based design choice.
Assessed

3-5-ETS1-3

Teams use a repeatable low-tech test—ask three viewers to operate the puppet using only the team's picture directions—then revise one feature.

What students show: Test notes, before-and-after design, and explanation of improvement.

Materials

  • Cardboard, cardstock, and paper plates
  • Brass fasteners, string, straws, and craft sticks
  • Fabric scraps, yarn, collage paper, and markers
  • Rulers, pencils, markers, and planning paper
  • Masking tape, glue dots, paper fasteners, clips, and rubber bands
  • Scissors and other teacher-approved hand tools
  • Reused and student-proposed materials approved before use

Teacher preparation

  1. Set out a broad materials buffet instead of identical kits.
  2. Build one small test rig, not a finished example students may copy.
  3. Mark size, time, and material limits visibly.
  4. Prepare a team planning page and shared test-data table.
  5. Create a safe holding area for drying or unfinished builds.

Step by step

How to teach it

Day 1 · 0–20

Explore the challenge

  1. Introduce the mission: Build a mini puppet scene in which one character performs two different movements to tell a short story.
  2. Identify the user or audience and what success should look like.
  3. Explore how sample materials bend, fold, join, compress, slide, or balance.
Day 1 · 20–60

Imagine and prototype

  1. Each student sketches a different possibility.
  2. Teams compare ideas against criteria and constraints.
  3. Build a quick model using only part of the material budget.
Day 2 · 0–35

Build and test

  1. Complete the first working version.
  2. Use the same procedure each time: ask three viewers to operate the puppet using only the team's picture directions.
  3. Record what worked, what failed, and where it happened.
Day 2 · 35–60

Improve with evidence

  1. Change one important feature rather than rebuilding randomly.
  2. Repeat the same test and compare results.
  3. Add color, surface, form, or story details that strengthen the purpose.
Optional Day 3

Gallery and challenge round

  1. Display designs with a one-sentence mission and test result.
  2. Let visitors try the project using the same rules.
  3. Teams explain one tradeoff and one idea they would try next.

Assessment

  • Problem statement includes a purpose, criteria, and constraints.
  • Sketches show meaningfully different ideas.
  • Material choices are explained using properties.
  • Test is repeatable and produces recorded evidence.
  • Revision responds to a specific result or failure point.

Supports & extensions

  • Offer picture directions and sample joining techniques.
  • Provide pre-cut pieces, adaptive scissors, or larger materials.
  • Allow students to explain through drawing, speaking, or demonstration.
  • Assign flexible roles: designer, builder, tester, recorder, and artist.
  • Extension: reduce material use while maintaining performance.

Safety & responsible use

  • Use only clean, teacher-approved reused materials.
  • Carry scissors and tools safely; cut away from hands and bodies.
  • Cover sharp cardboard corners, wire ends, skewers, or fasteners.
  • Use a defined test zone and keep faces away from moving or falling parts.
  • Teacher handles hot glue, craft knives, and any tool not approved for students.

No-machine alternative

The entire project is already designed for common classroom materials. Substitute paper folds, tabs, slots, string, tape, or found objects while keeping the same criteria and fair-test cycle.

Printable student design brief

The challenge

Build a mini puppet scene in which one character performs two different movements to tell a short story.

Success criteria

  • Character completes two clear movements
  • Controls work without tearing or jamming
  • Movement supports an understandable story

Constraints

  • Hand-powered only
  • Controls remain behind or beside the stage
  • Story lasts 30–60 seconds

Engineer’s notes

Our design should…
We chose this material because…
Our first test showed…
The failure point was…
We changed… because…
Next time we would…
